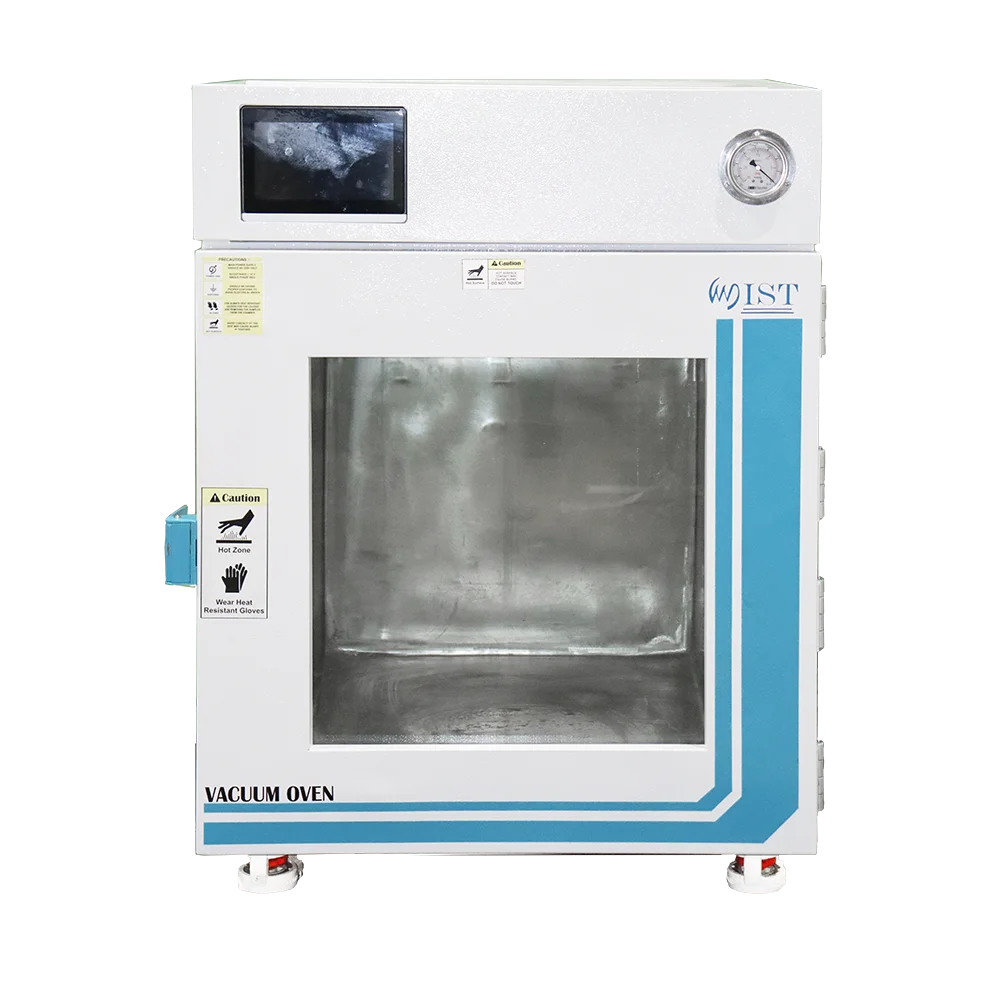

Front view of a WIST Vacuum Oven with large tempered glass door and clear view of the stainless steel interior chamber, ideal for solvent removal and low-temperature drying.

Vacuum Oven (Max 250°C)

The WIST Vacuum Oven is designed for controlled drying, heating, and thermal processing under reduced pressure in laboratory and industrial environments. Operating up to 250°C with vacuum capability, it features stainless steel interiors, precise PID control, and vacuum-tight construction, ideal for heat-sensitive drying, solvent removal, and advanced material testing.

Key Features:

Temperature range: Ambient +5°C to 250°C
Vacuum range: 1 mbar to atmospheric pressure
PID microprocessor-based temperature and vacuum control system
Double-walled construction with vacuum insulation for thermal efficiency
Inner chamber made of stainless steel 304 grade
Exterior made of powder-coated mild steel (CRCA)

Construction & Design

Build & Materials

Outer body made of powder-coated CRCA steel (white and sky blue finish)
Inner chamber constructed from corrosion-resistant stainless steel 304
Vacuum-tight door with robust locking and silicone gasket
Top-mounted control panel for ease of operation
Heavy-duty castor wheels on models 320L and above

Heating & Vacuum Control

PT100 temperature sensor for accurate thermal readings
Electronic PID controller with SSRs for precise temperature and vacuum control
Color display for clear monitoring of temperature and vacuum levels
Stainless steel sheathed heating elements ensuring uniform heating
Integrated vacuum pump connection port
Fast temperature ramp-up and controlled vacuum release

Construction & Design

Thermal & Vacuum Insulation

Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage.
Thick layered glass window for easy observation of samples.
Removable and height adjustable Stainless Steel perforated Shelves
Vacuum tight high density one-piece silicone door gasket.
Observation illumination light inside the chamber
Air tight one touch door latch lock.
Analog Vacuum Gauge -760 mmHg ( -0.1 Mpa)
Integraded vaccum pump along with equipment.

Air Circulation & Vacuum System

Vacuum system enables drying at reduced pressures for delicate samples
Uniform temperature distribution via optimized airflow design
Optional adjustable fan speed feature for airflow control

Shelves & Safety

Shelving & Access

Stainless steel adjustable shelves included
Multiple shelf positions with 35 mm spacing
Each shelf supports up to 30 kg
Anti-tilt shelf support design
Entry port on side for vacuum line or sensors

Safety Features

High/low temperature deviation alarm
Over-temperature cutoff thermostat
Vacuum loss alarm and safety cutoff
MCB protection in case of heater failure
Heating and vacuum operation indicators on control panel

Table of Specifications

Temperature Range	Ambient +5°C ~ 250°C
Temperature Accuracy	±0.5°C
Temperature Uniformity	±2.0°C
Vacuum Range	1 mbar to 1 atm
Vacuum Accuracy	±5 mbar
